CORE Grass™ Foundations

CORE Grass™ Foundations

Grass Surfaced Parking Foundations

CORE Grass™ is a turf stabilizing system, a green choice for low-impact parking. CORE Grass™ Reinforcement grids provide amazing stability, grass protection and sustainable drainage, while delivering the desirable visual and natural effect of grass paving. A beautiful, sustainable and economical solution to manage storm water and reduce heat island effects in public places, parking and traffic areas.

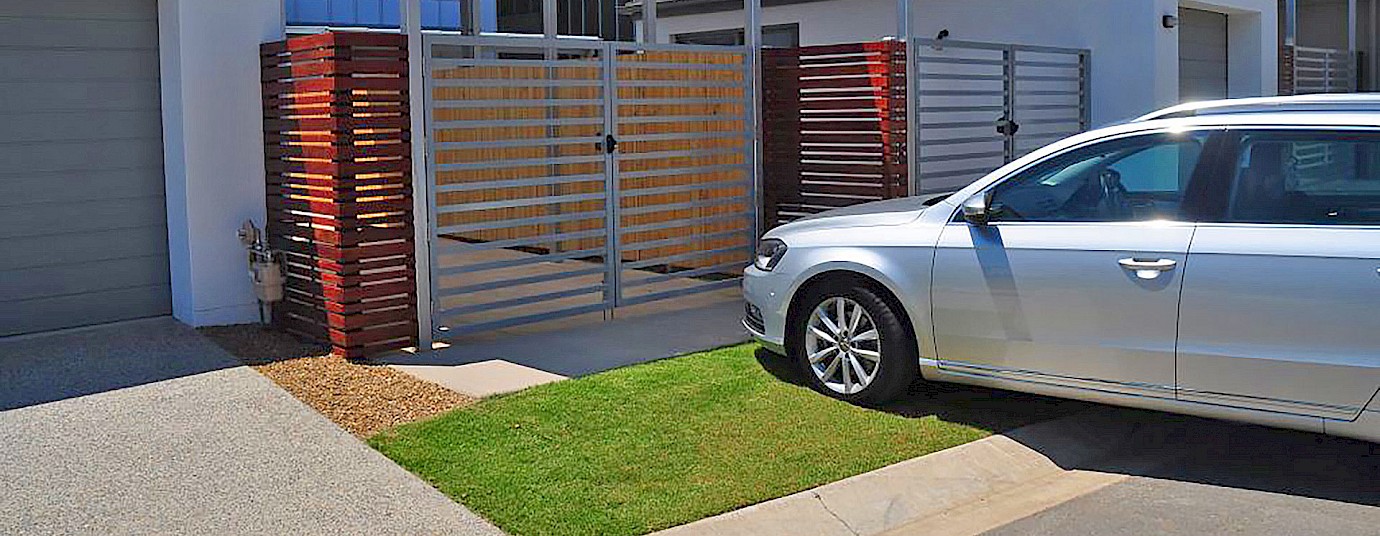

Parking lots, access roads, and driveways installed with CORE Grass™ are stabilized so turf can grow, with no ruts or sinking, and all the beauty and benefits of a natural, green surface.

Environmentally Friendly Grass Surfaced Parking System

CORE Grass™ is environmentally friendly in design, function and material. Many plastic grass grids on the market lack the strength necessary to last and absorb high levels of traffic; not so with our honeycomb design. This product provides amazing stability, grass protection and a sustainable drainage model as well as providing the visual and natural effect of a grass paver.

Unlike other plastic grass grids, CORE Grass™ Reinforcement is environmentally friendly and has the strength to withstand high levels of traffic. This system provides Load Bearing of up to 350 tons per square metre (dependent on grid size), making it suitable for pedestrians, cars, 4x4s and even heavy commercial or emergency vehicles. The design of the grid allows for conventional maintenance of your lawn with ride-on or hand lawn mowers.

CORE Grass™ is a proprietary interlocking design with manageable panel sizes that makes for easy installation. They are easily trimmed to work around curved border areas. Applications are ideal for use in hardscapes or landscapes where you need the porosity and beauty of natural grass to support all types of traffic.

Stormwater Permeates the Entire Surface

CORE Grass™ 60-40, features a unique lateral drainage system that allows water to move horizontally through the grid just below the surface. CORE Grass™ 50-35 is ideal for most homeowner applications, while our CORE Grass™ 60-40 is ideal for commercial settings. The unique design of CORE Grass™ 60-40 provides lateral drainage capability, allowing the water to move horizontally through the grids, just below the surface.

This allows stormwater to permeate evenly across the entire surface, protecting the turf from unnecessary erosion and providing even, consistent growth.


Applications

  • Fire, Utility Access Lanes
  • Grass “Green” Driveway
  • Pedestrian Walkways, “Cow Paths”
  • Retention Pond, Dry Infiltration Basin Reinforcement
  • Erosion Control
  • Estate grounds
  • Helicopter pads
  • RV & Tent Camping Sites
  • Overflow, Stadium & Event Parking
  • On-street Parking - Grass Shoulders
  • Handicap Parking
  • Parking Lots
  • Airplane Transport Areas
  • Gardens & Patios
  • Parks, Bicycle Trails & Pathways
  • Sports Venues

 Want to touch and feel our product?

Click Here to order CORE Grass samples. We provide sample packs ranging in price from $10-$25 depending on where you are in Canada or the USA. Please fill out our project information form for project pricing over 150 sq ft.


CORE Grass Benefits

  • Max Load Support – Enhanced load bearing ensures no rutting or soil compression with vehicle traffic, yet still 100% pervious (permeable).
  • Stormwater BMP – Reduces storm water runoff significantly and improves water quality with natural pollution filtration and treatment.
  • Heat Island LID - Reduce and mitigate urban heat island effects with this cool low-impact development practice.
  • LEED Credit - Used in SUDS and LEED compliant porous paving BMPs for ideal draining and minimal environmental impact.
  • ADA Compliant – Used in ADA disability compliant surfaces for pedestrians, bicycles, & wheelchair traffic.
  • Erosion Control – Address a wide range of erosion control, earth retention, slope protection, and stability issues.
  • Parking lines in grass – Easily add delineation and edge indicators with CORE Marker.
  • Aesthetically pleasing – Nearly invisible, no unsightly infrastructure is seen, just green grass.

CORE Product Features

  • All of our grids contain Carbon Black as a UV (ultra- violet light) inhibitor.
  • All of our grids are made by Injection Mold, the highest quality process available for creating rigid plastic products. Lower quality 2-part extrusion molded products that come in rolls and have non-continuous surfaces are not uniform and the plastic has the potential to separate with tire turning.
  • All of our CORE Gravel™ and CORE Grass™ grids have flexibility (resistance to fracture), tensile strength and maximum shearing load (thank the bees for these last 2).
  • All CORE Gravel™ grids come with a geotextile fabric heat-welded to the back of every single honeycomb cell. This saves time and money during installation.

CORE Grass Specification

Material 100% Recycled or virgin polypropylene (PP)
Colour Standard: Green
Optional: Black, White and custom colours
Cell Shape Honeycomb cells
Cell Wall Height 35mm – 45mm
Strength 150 – 250 tons/m2 (EMPTY)
Chemical Resistence Excellent
UV Resistance Excellent
Medium Sheet Size 50-35 = 47.2” x 28.5” (1200mm x 800 mm) or 60-40 = 45.3″ x 39.4″  (1150 x 1000 mm) or 65-45 = 45.3″ x 31.5″ (1150 X 800 mm)
Jumbo Sheet Size 2-3 times panel size as per above
Custom sizes also available

PDF Resource Links

 CORE Grass™ Fact Sheet & Installation Guide

CORE Grass™ Specifications

CORE Grass™ Brochure


We are the Canadian/US Distributors for the CORE Gravel™ product line.
Contact us for an estimate on a project or to purchase our materials for your personal or civic project.
