CORE Gravel™ Foundation Products

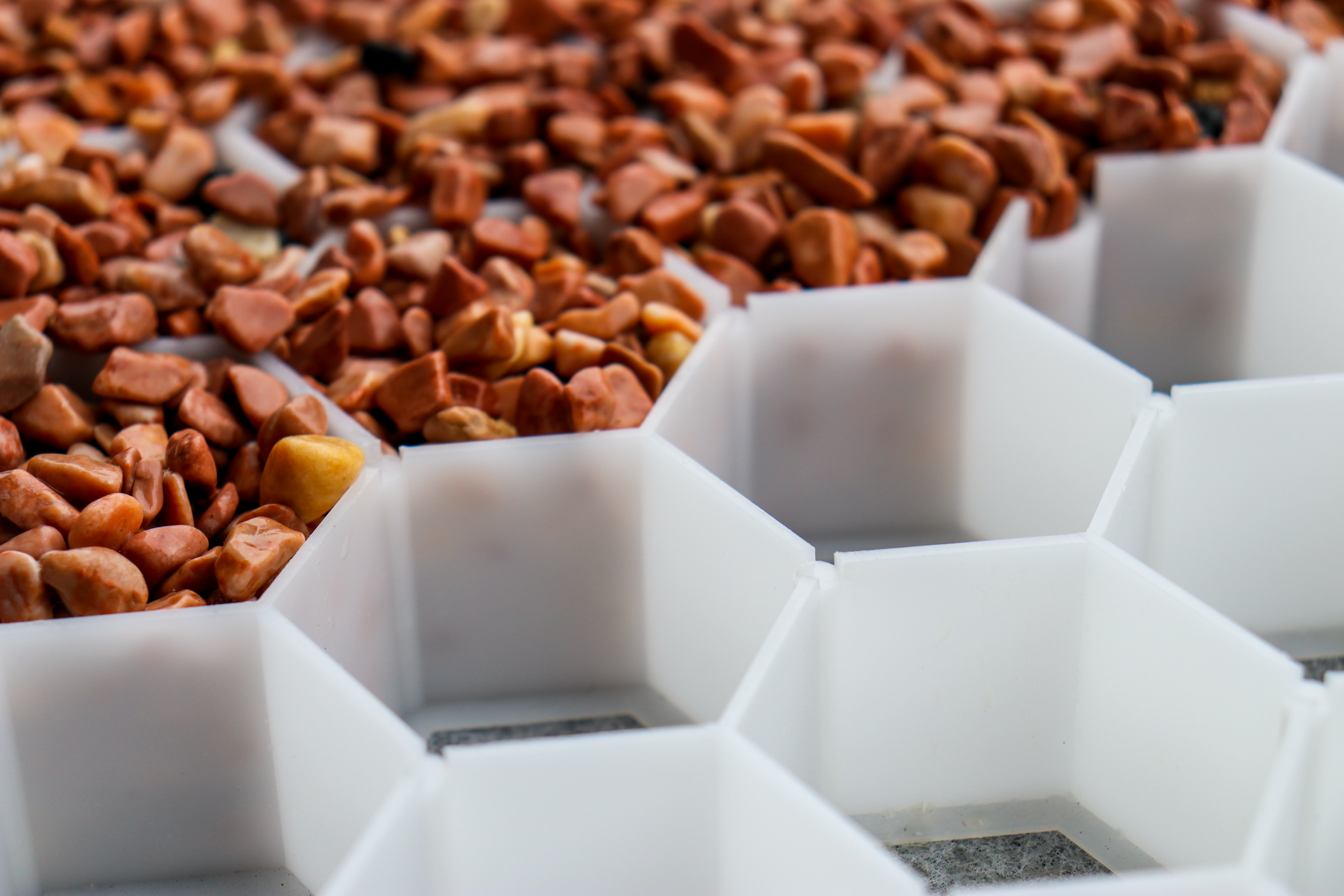

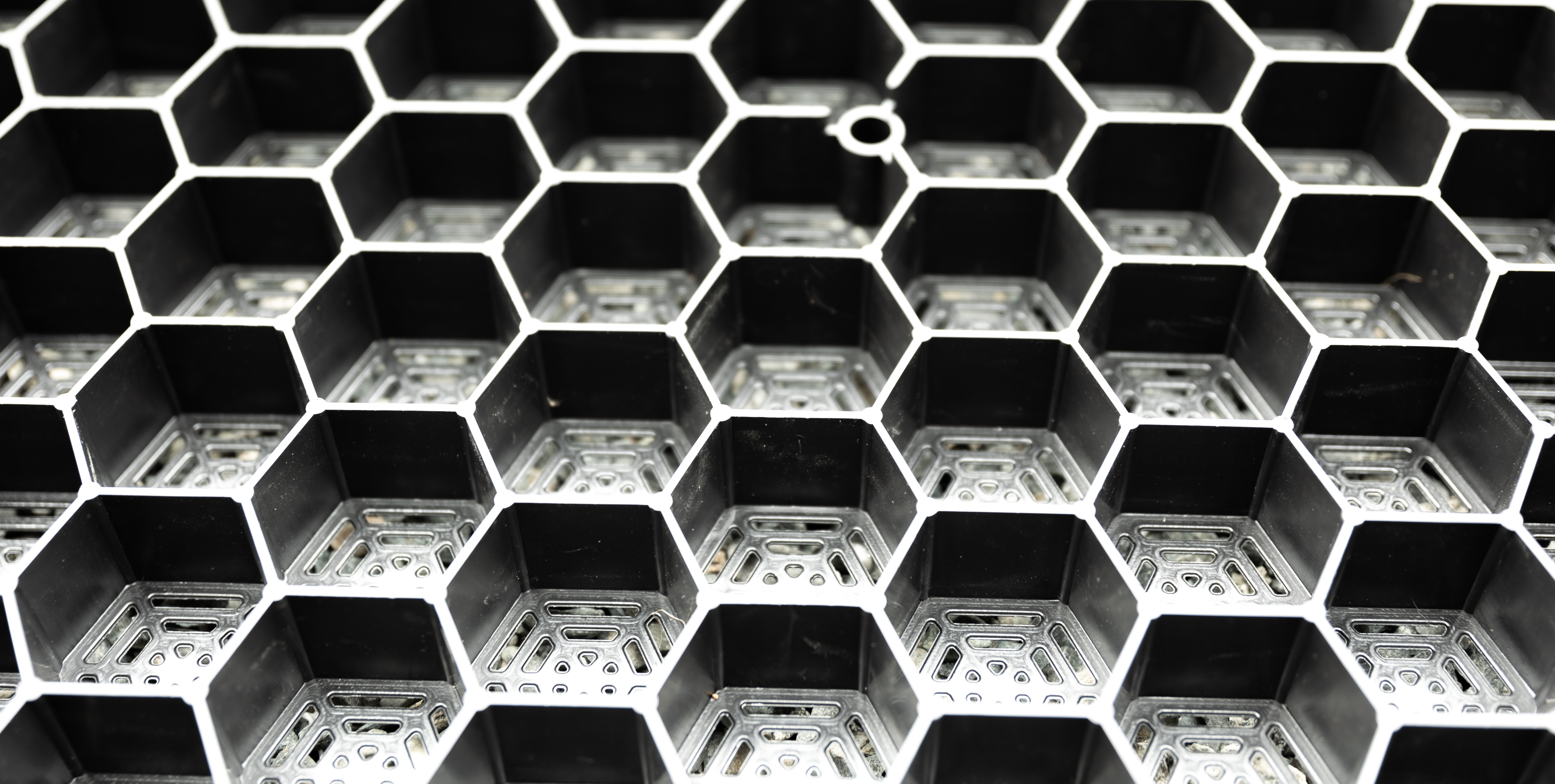

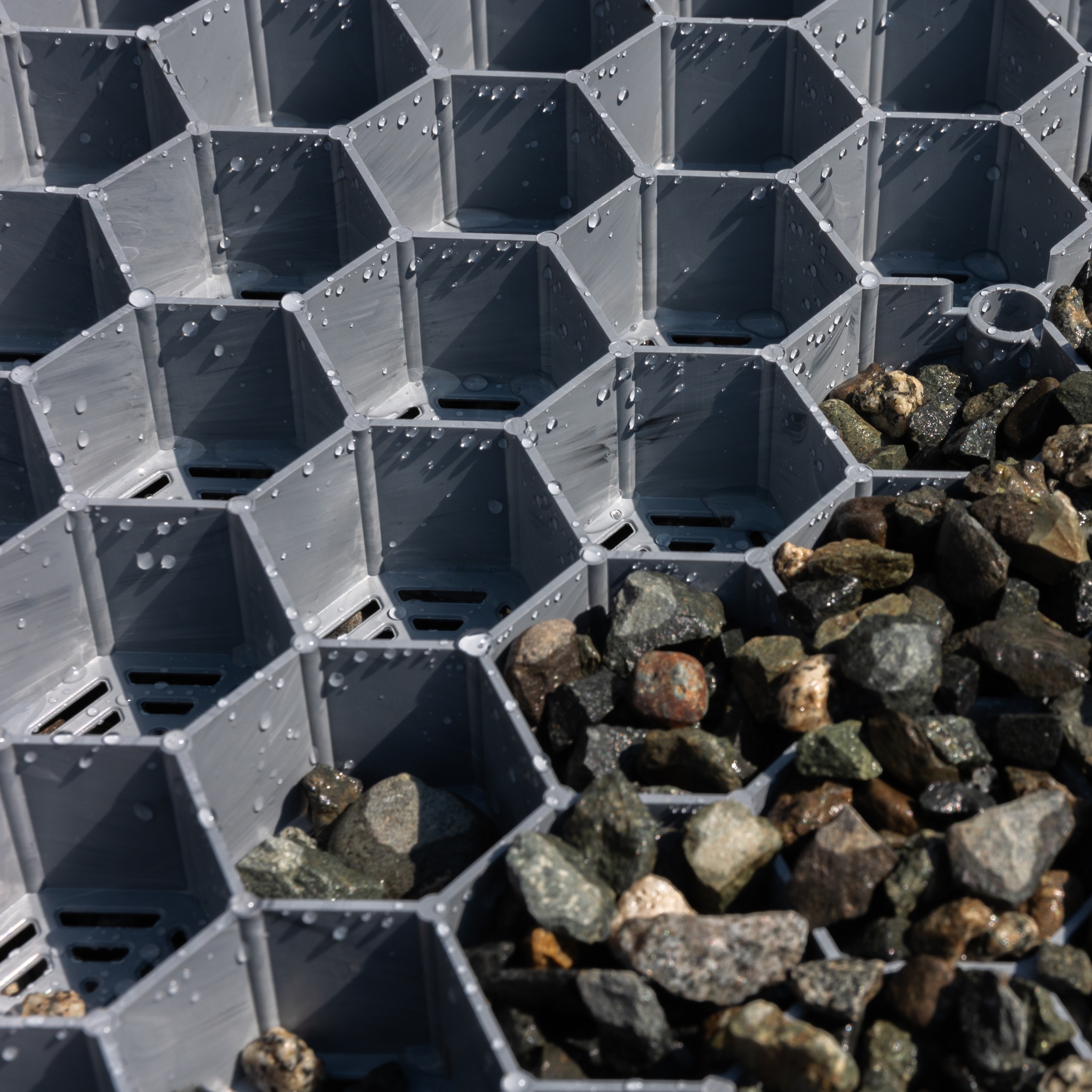

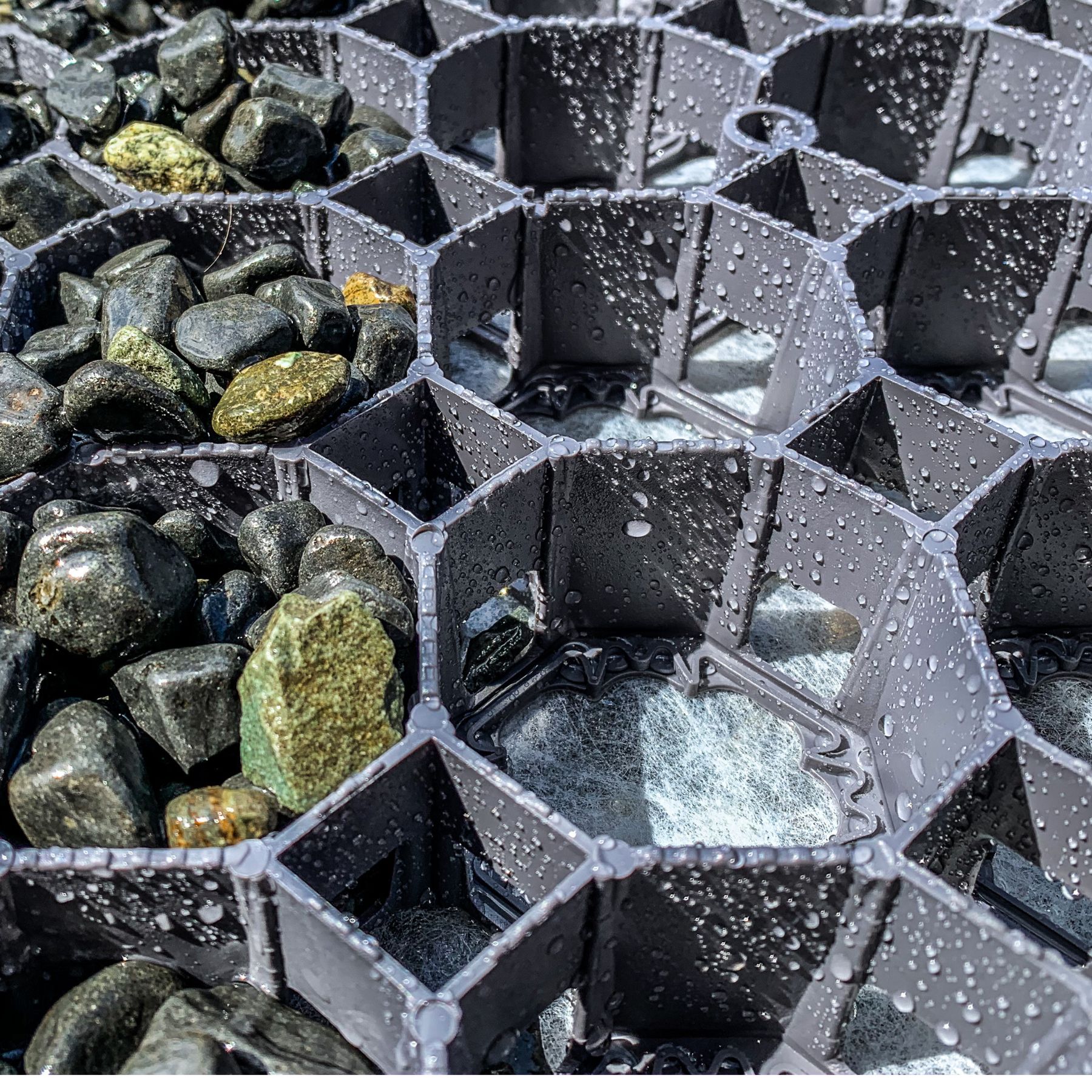

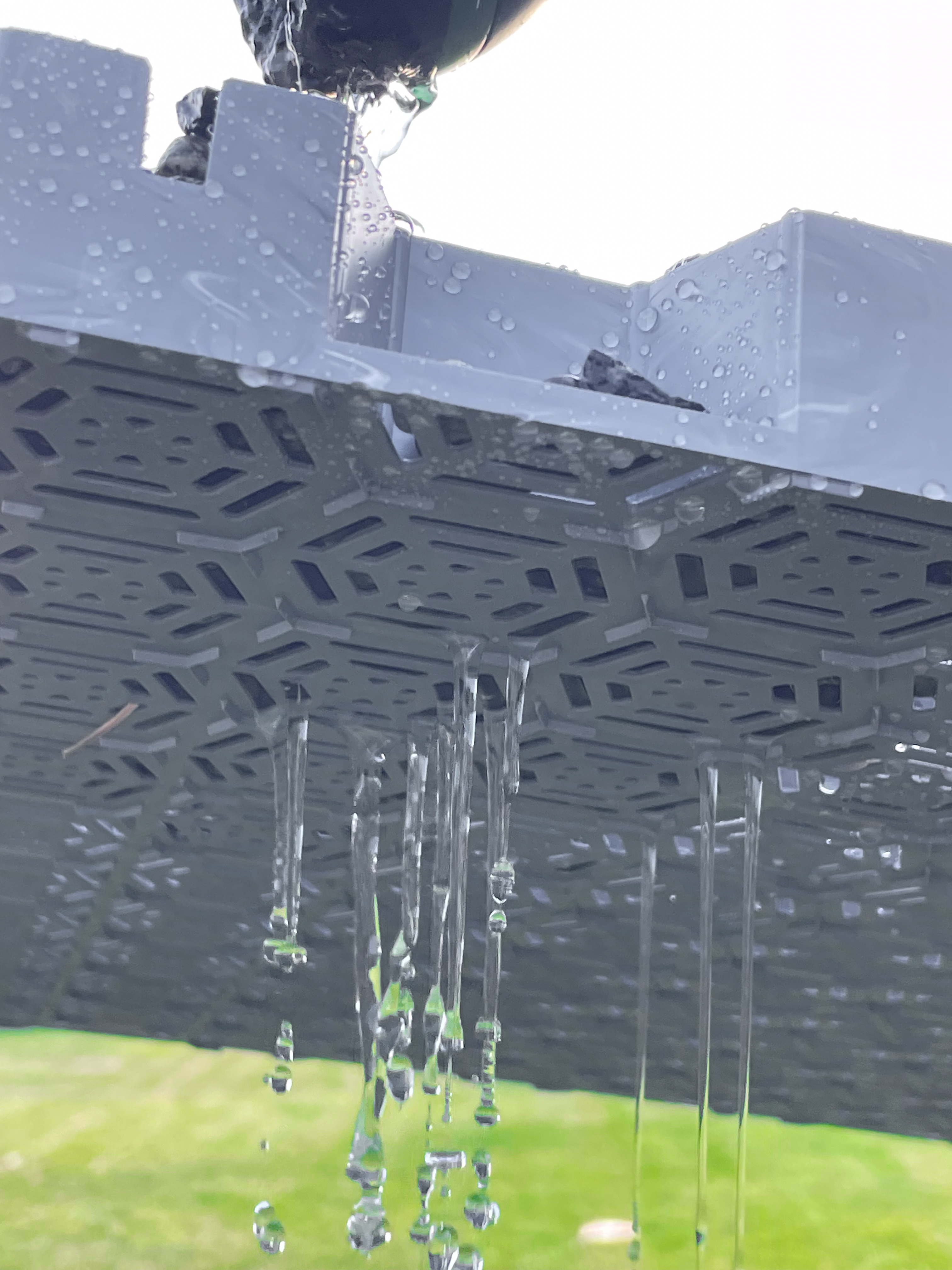

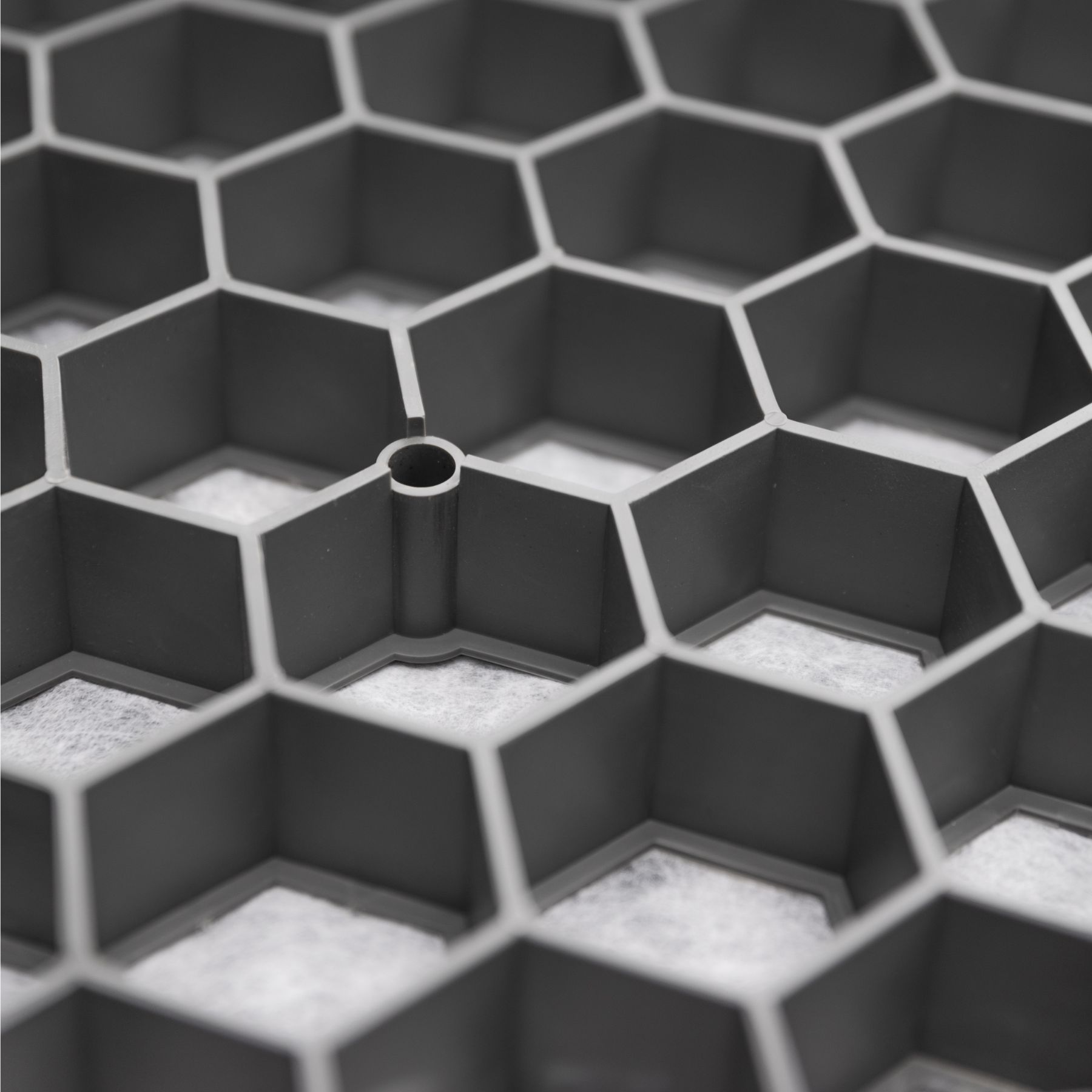

It's all about the power of the honeycomb! CORE Landscape's patented honeycomb grid foundation system is inspired by one of nature's most invaluable species - the honeybee. The incredibly strong honeycomb structure makes Core Gravel the lightest, strongest, and most flexible landscape foundation system on the market. Core Gravel grids disperse the weight of the infilled gravel, prevent compaction, and facilitate stormwater recharge; creating a stable, safe, and environmentally-friendly landscaping solution.
CORE Gravel™ Sample Pack
Want to touch and feel CORE Gravel product? Click Here to order samples.

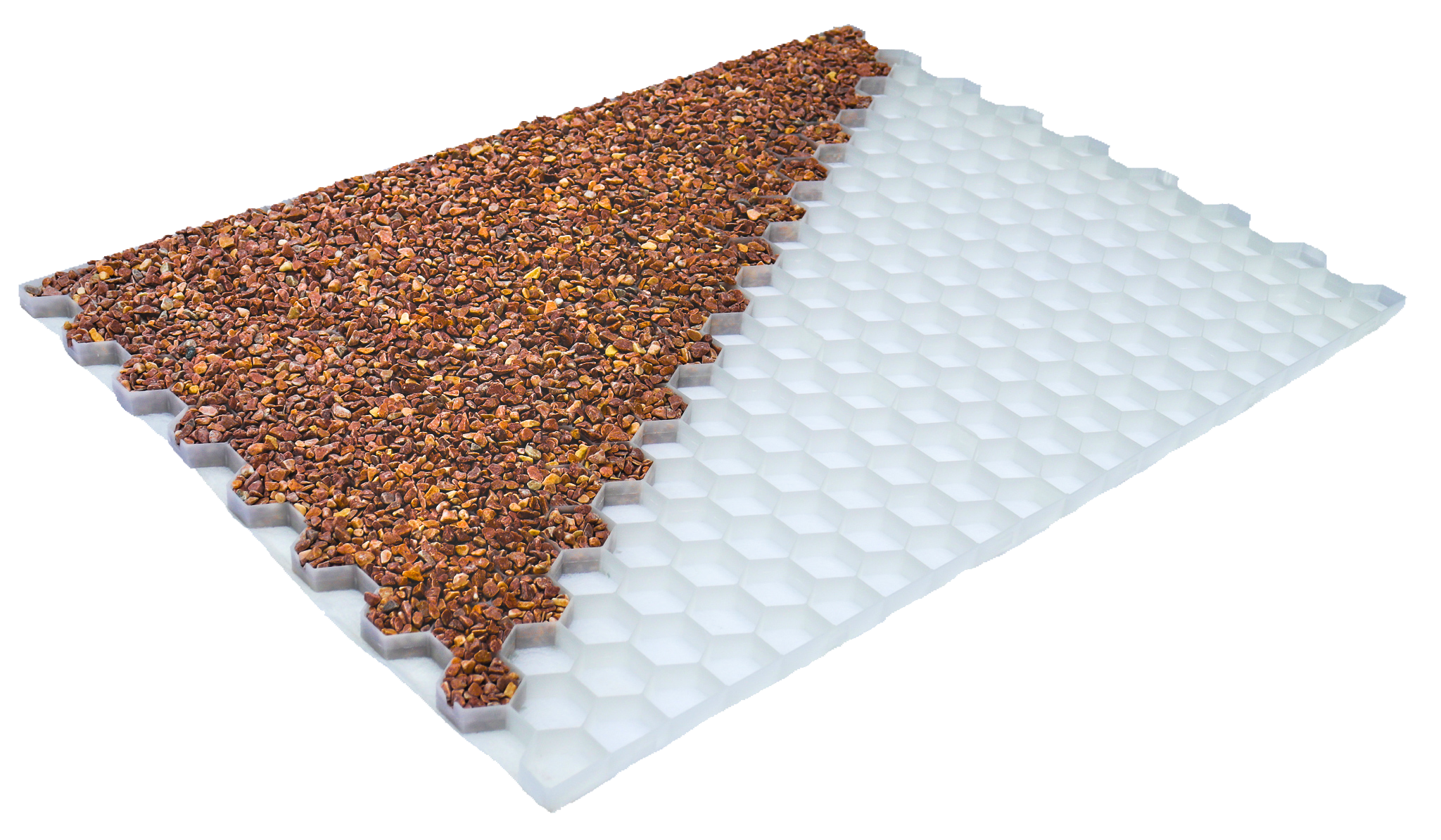

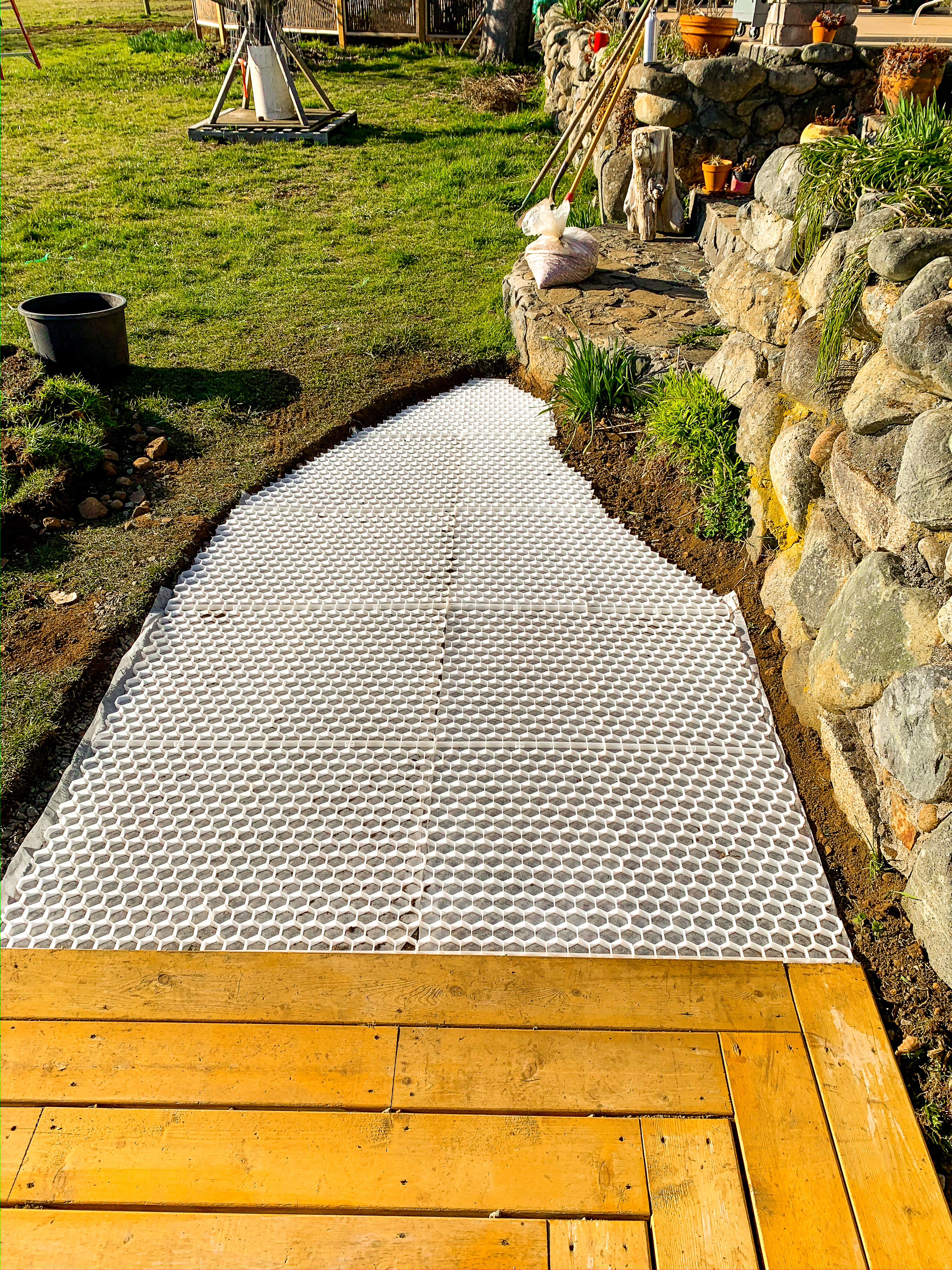

CORE Path™ 38-18
Perfect for light duty residential applications where you require a stable and permeable surface. Pedestrian traffic only.
Use: Light duty - residential paths, patios, and landscaping
Gravel size: 3 - 10 mm
Cell Size: 38 mm wide x 18 mm deep
Cell Wall Thickness: 1.0 mm
Sheet Size: 1.15 m x .8 m (= 9.9 sq. ft.)
Cell Colour: White
Geotextile Fabric: Yes
Compressive Strength: 40 t/m2 (empty)
Suitable for vehicles: No, residential pedestrian traffic only
CORE Markers: Yes
Slopes: Excellent
Small Projects:
Click here to shop Core Path Handypack!
Larger Project:
Request a Quote or call us at 1.855.777.2673
CANA Gravel™ Medium
100% made in British Columbia, Canada. Produced using recycled ocean plastics from ocean legacy.
Use: Heavy Duty - Residential paths, patios, shed floors, residential parking pads, and more!
Gravel size: 0.2" - 0.6" (5 – 15 mm)
Cell Size: 50 mm wide x 35 mm deep
Cell Wall Thickness: 2.3 mm
Sheet Size: 578mm x 475mm (= 3.0 sq.ft.)
Cell Colour: Light Grey
Geotextile Fabric: Optional
Compressive Strength: 150 t/m2 (empty)
Suitable for vehicles: Yes
CORE Markers: Yes
Specifications Sheet
Click here to shop CANA Grid medium!
Project is over 400sq.ft? Request a Quote or call us at 1.855.777.2673
CANA Gravel™ HD
100% made in British Columbia, Canada!
Use: Heavy Duty - Commercial paths, residential driveways, restaurant patios, and more
Gravel size: 0.2" - 0.6" (5 – 15 mm)
Cell Size: 50 mm wide x 35 mm deep
Cell Wall Thickness: 2.3 mm
Sheet Size: 578mm x 475mm (= 3.0 sq.ft.)
Cell Colour: Grey (Dark) or White
Geotextile Fabric: Optional
Compressive Strength: 150 t/m2 (empty)
Suitable for vehicles: Yes
CORE Markers: Yes
Specifications Sheet
Click here to shop our new CANA grid heavy grid system!
Project over 400sq.ft? Request a Quote or call us at 1.855.777.2673 for larger quotes!
CORE Gravel™ 50-35HD(R) - Recycled plastic

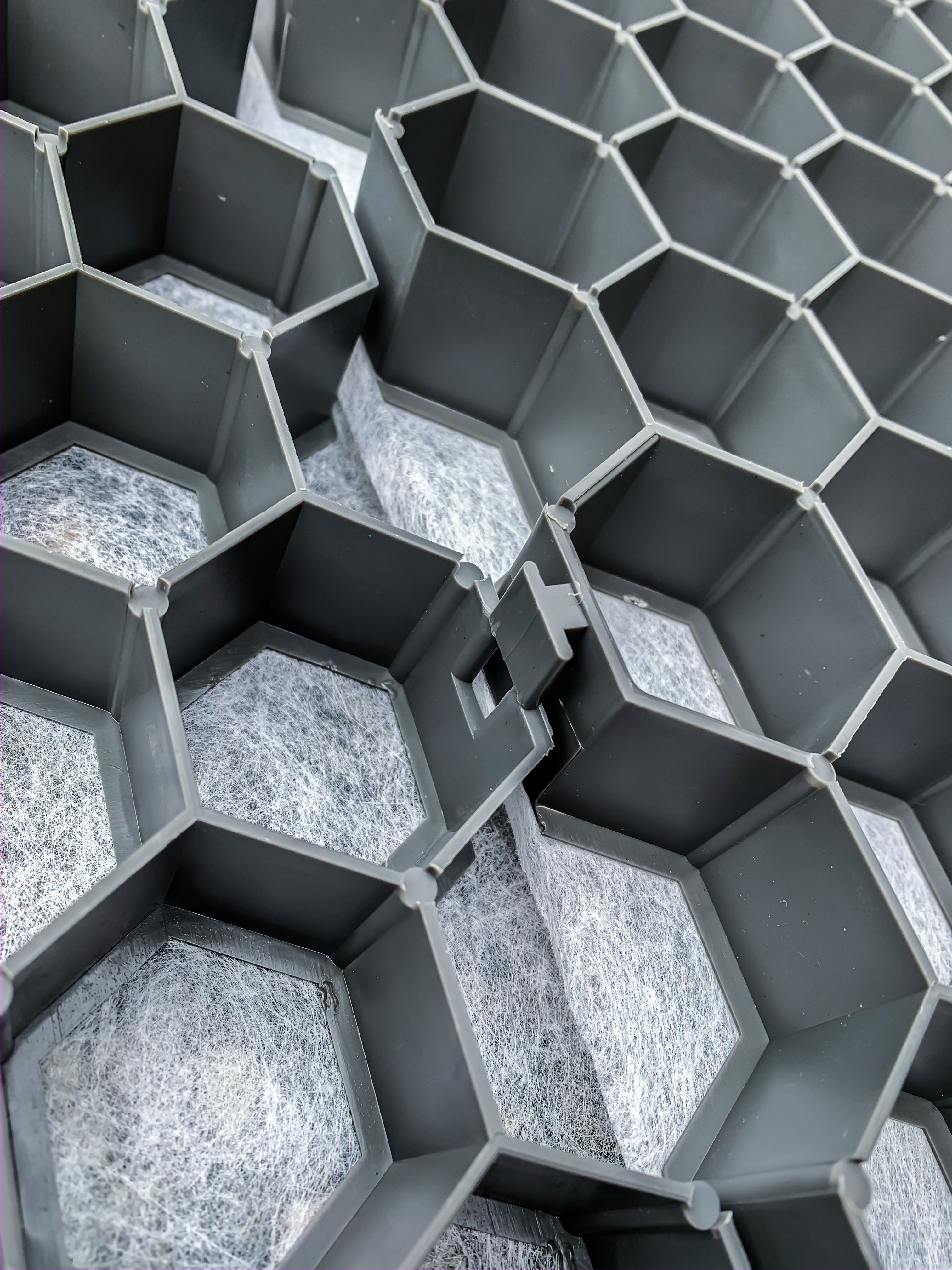

Introducing our most versitile and well rounded product to date. With impressive strength, heat-welde geo-textile, and an unbeleavably easy connection method - this is our go to foundation.
Use: Heavy Duty - commercial paths, residential driveways, restaurant patios, and more
Gravel size: 7 – 15 mm
Cell Size: 50 mm wide x 35 mm deep
Cell Wall Thickness: 2.0 mm
Sheet Size: 1.15 m x .78 m (= 9.7 sq.ft.)
Cell Colour: Grey (Dark) or Black
Geotextile Fabric: Yes
Compressive Strength: 150 t/m2 (empty)
Suitable for vehicles: Yes
CORE Markers: Yes
Slopes: Excellent of low slopes. Steeper slopes should move to the virgin plastic version of this grid (50-35HD)
This grid is also available in a grass variant.
Specifications Sheet
Small Projects:
Click here to shop our 50-35 HDR grid system!
Larger/Commercial Projects:
Request a Quote or call us at 1.855.777.2673
CORE Gravel™ 50-35HD - Virgin plastic
This takes our favourite grid system and makes it even stronger. The virgin plastic compound in 50-35 HD signifacntly stregnthens the grid system compared to 50-35 HDR, making it ideal for driveways and sloped applications.
Use: Heavy Duty - commercial paths, residential driveways, restaurant patios, and more
Gravel size: 7 – 15 mm
Cell Size: 50 mm wide x 35 mm deep
Cell Wall Thickness: 2.0 mm
Sheet Size: 1.15 m x .78 m (= 9.7 sq.ft.)
Cell Colour: Meaders Grey (light) or White
Geotextile Fabric: Yes
Compressive Strength: 150 t/m2 (empty)
Suitable for vehicles: Yes
CORE Markers: Yes
Slopes: Excellent on any steep slope
Specifications Sheet
Larger/Commercial Projects:
Request a Quote or call us at 1.855.777.2673
CORE Gravel™ 60-40 *Superior Drainage

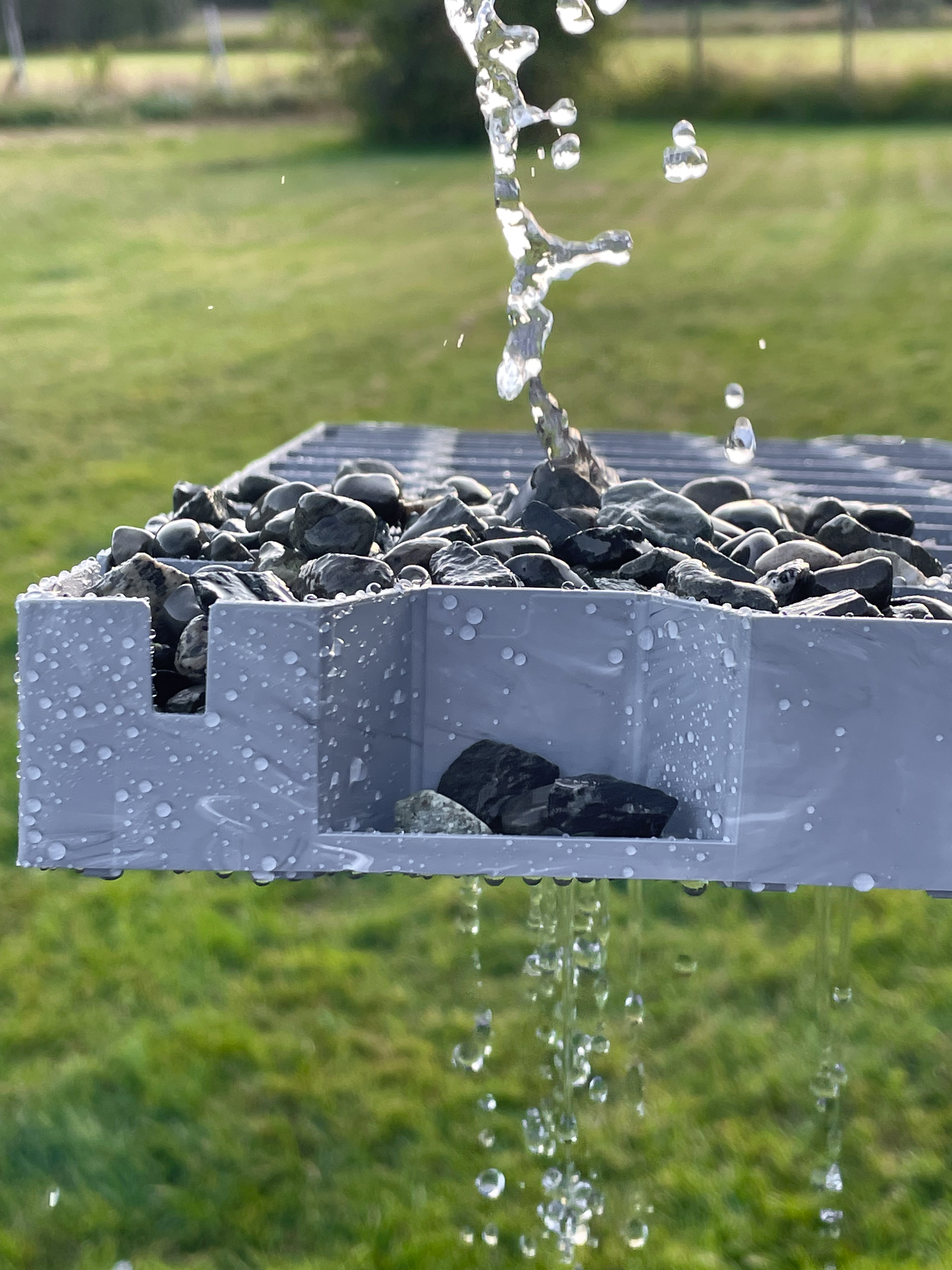

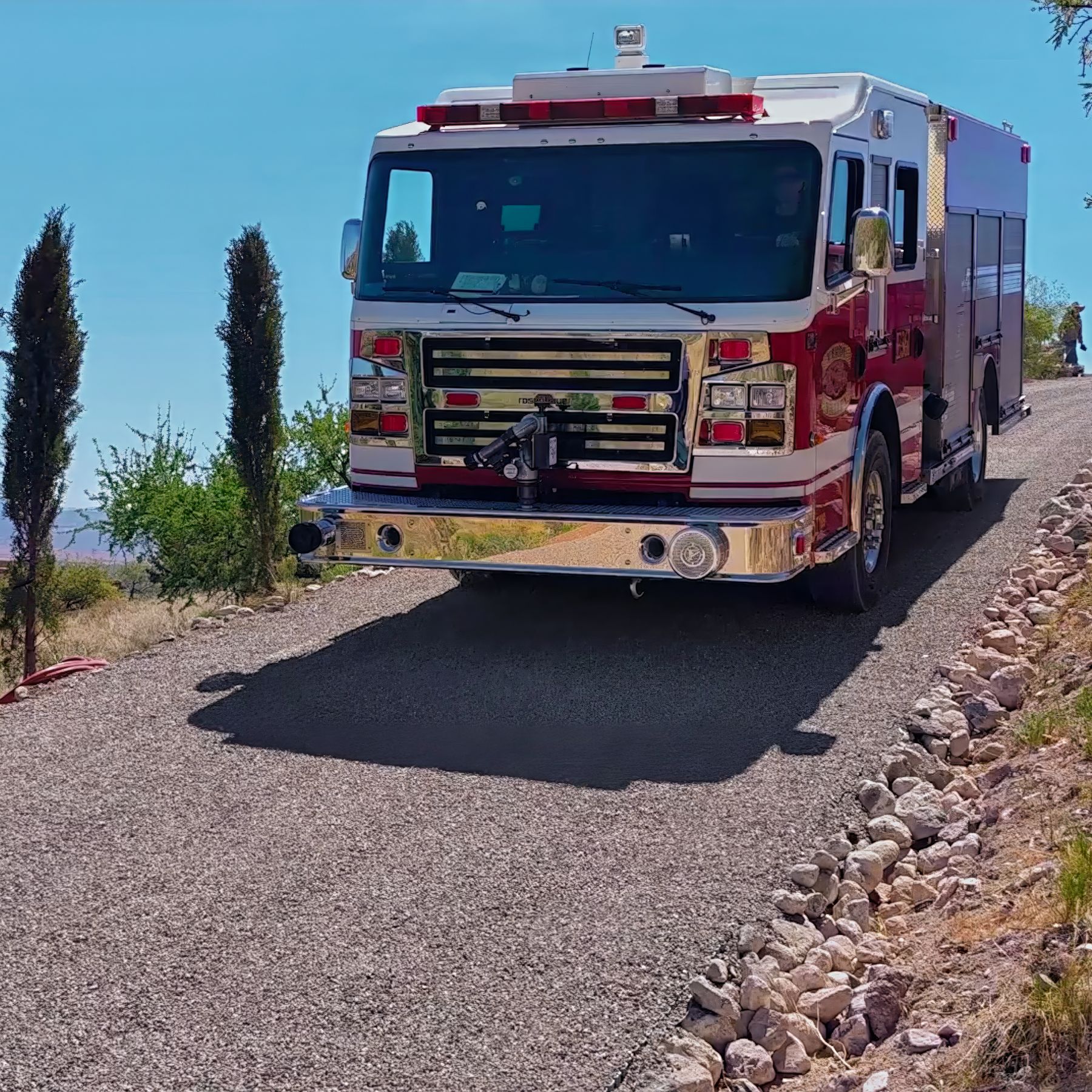

Introducing our flagship product, the 60-40 grid—a powerhouse of features designed to impress. Equipped with lateral drainage and spike holes for superior performance on slopes, this grid sets the standard for innovation and reliability. The 60-40 has earned US Fire Marshal approval, third-party steep slope certifications, and accolades from industry professionals, including HGTV and their landscape architects. Available in recycled plastic or virgin plastic variants.
Use: Heavy duty - vehicular traffic, commercial parking, sloped driveways, green roofs, flood zones
Gravel size: 7 – 15 mm
Cell Size: 60 mm wide x 40 mm deep
Cell Wall Thickness: 2.5 mm
Sheet Size: 1.15 m x 1.0 m (= 12.4 sq.ft.)
Cell Colour: Grey (standard), white and black available upon special request. All 100% post-consumer recycled materials.
Geotextile Fabric: Yes
Compressive Strength: 200 t/m2 (empty)
Suitable for vehicles: Yes, Regular and Heavy Duty Vehicles
CORE Markers: Yes (click on link to buy)

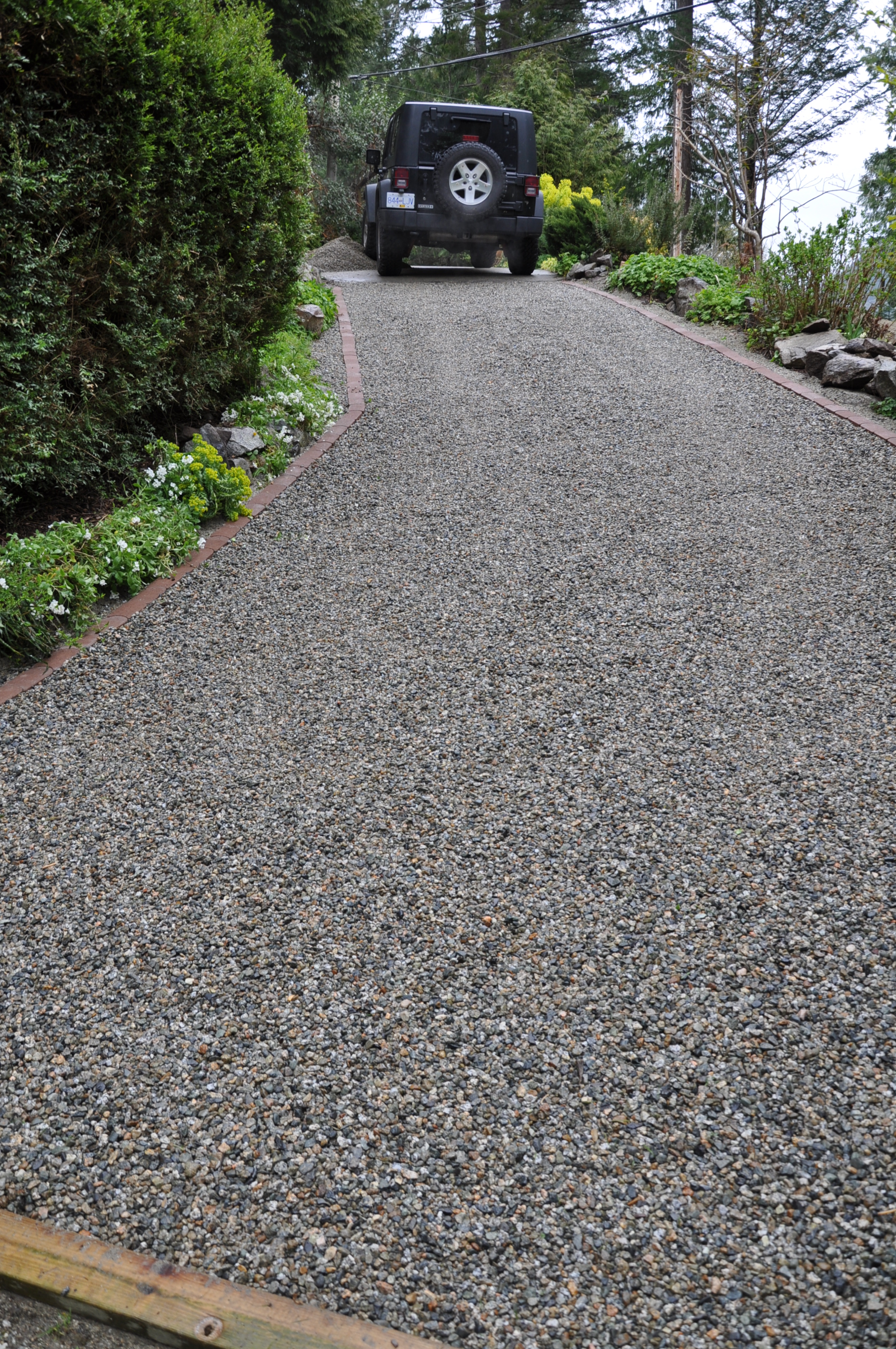

Slopes: Excellent, any slope (How to install - Steep Slope Driveway)
This grid is also available in a grass variant.
Click here to shop 60-40 for driveways!
Click here to shop 60-40 for hot tub foundations!
Request a Quote or call us at 1.855.777.2673

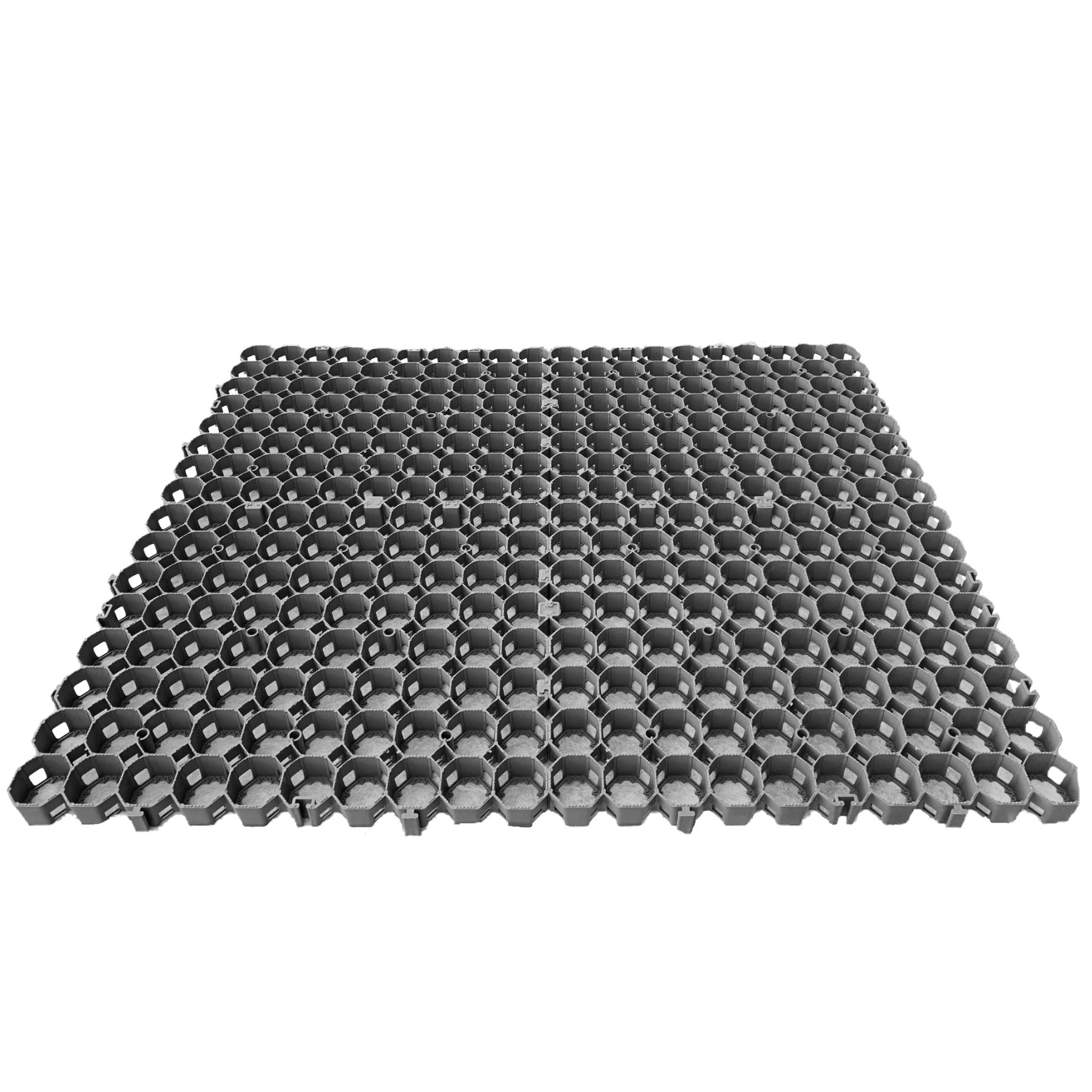

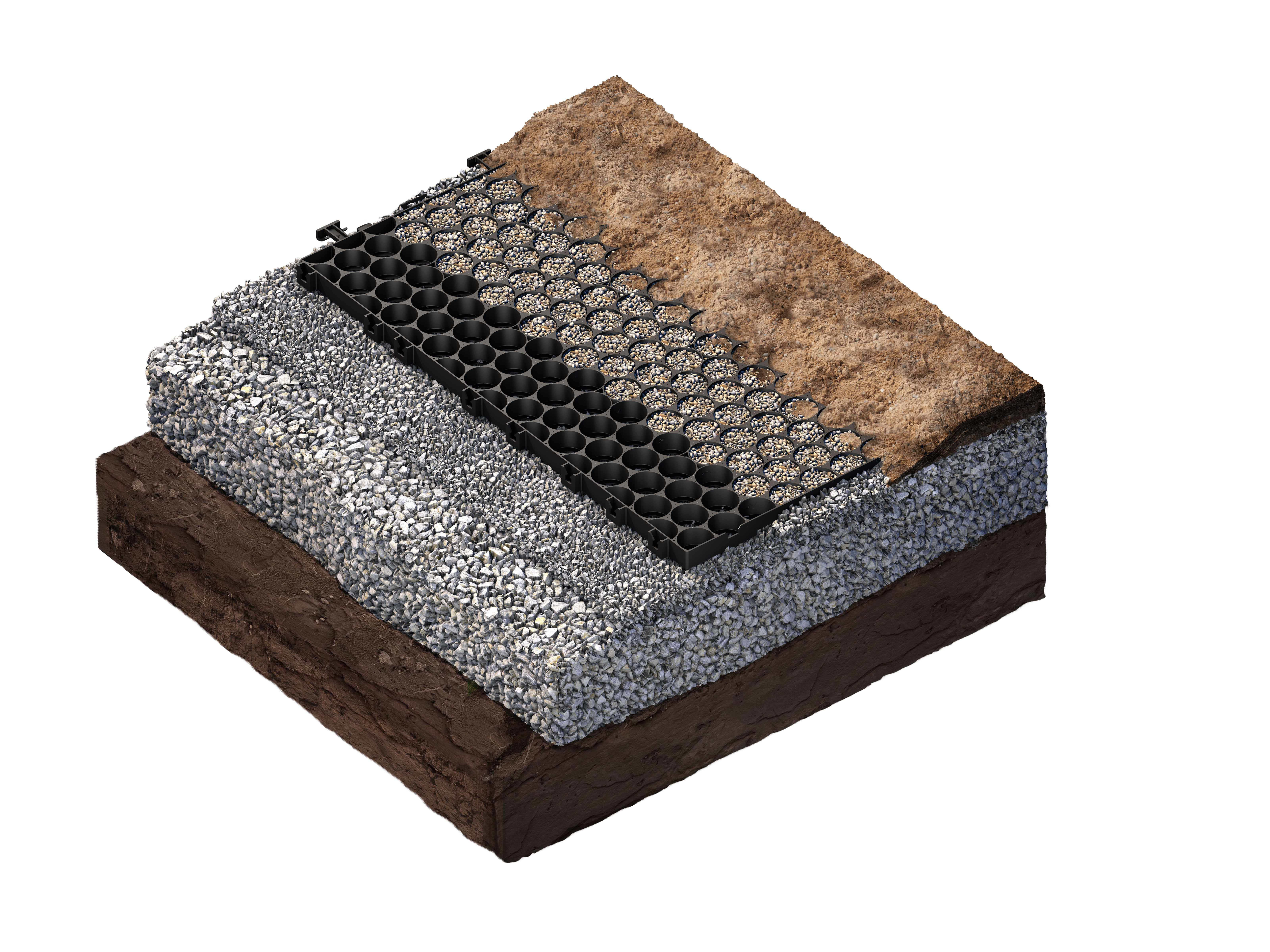

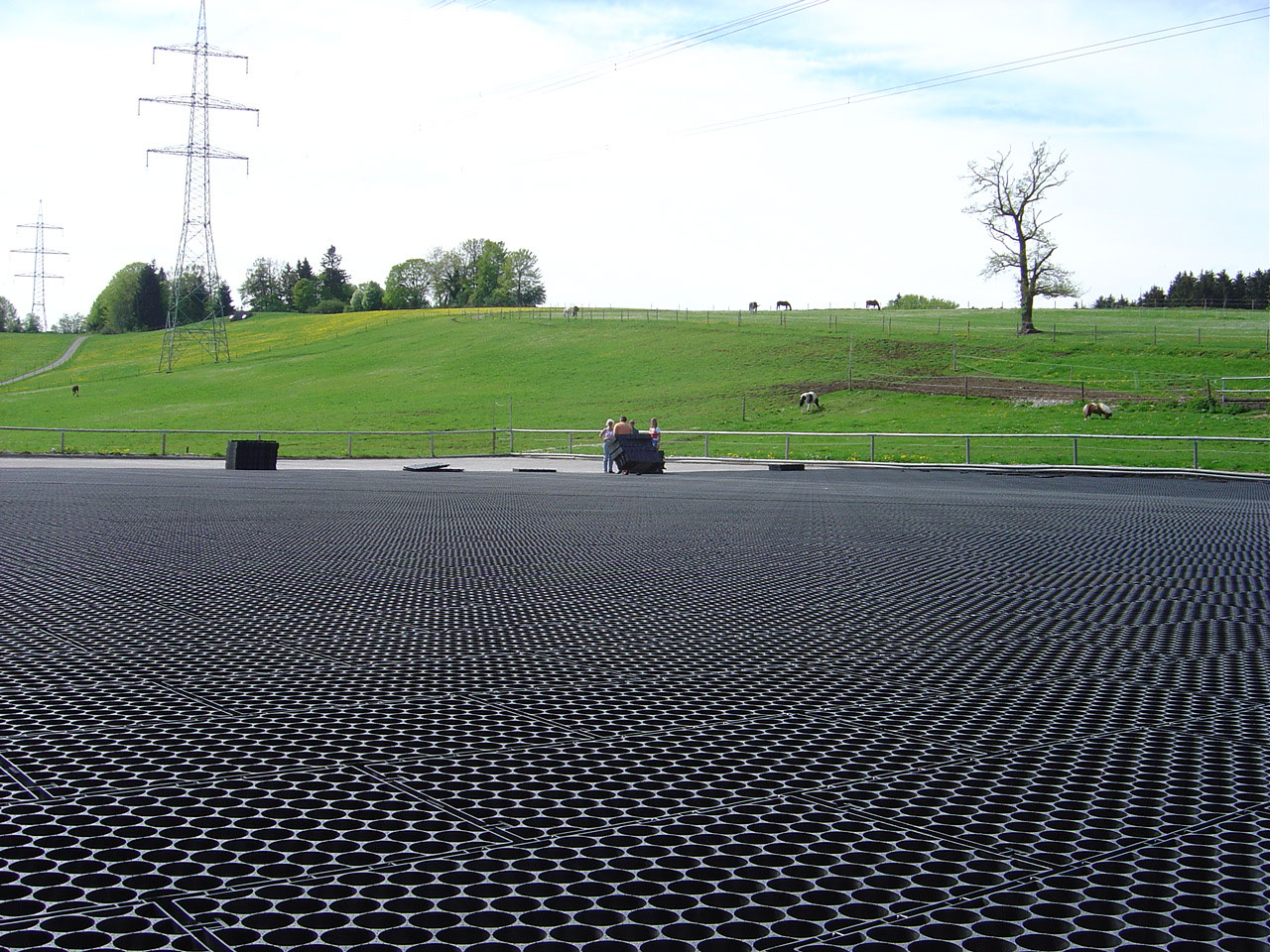

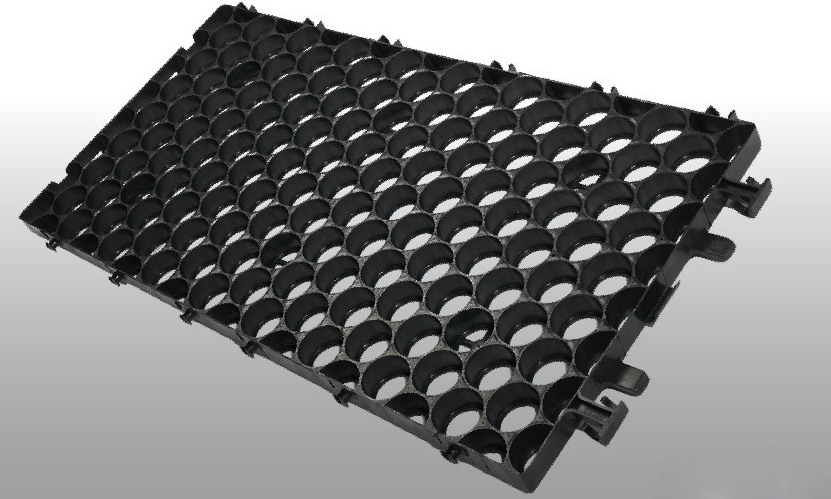

CORE Gravel™ 65-40 - Equine & Commercial Parking
65-40: The Ultimate Permeable Foundation for High-Impact Zones
Experience the next generation of permeable foundations with our revolutionary 65-40 system. Engineered for unparalleled strength and flexibility, it boasts a remarkable weight-bearing capacity of 350 tons per square meter while maintaining the flexibility to bend in half without breaking.
Ideal for high-impact applications, 65-40 is perfect for equestrian arenas, large parking areas, and any space that demands exceptional load-bearing performance. Whether you're preparing for heavy vehicle traffic or creating stable surfaces in dynamic environments, this innovative foundation ensures long-lasting durability and reliability.
[Click here to order under ~400 sq. ft.] - NOT YET AVAILABLE
[Click here to order exceeding ~400 sq. ft.]
Request a Quote or call us at 1.855.777.2673

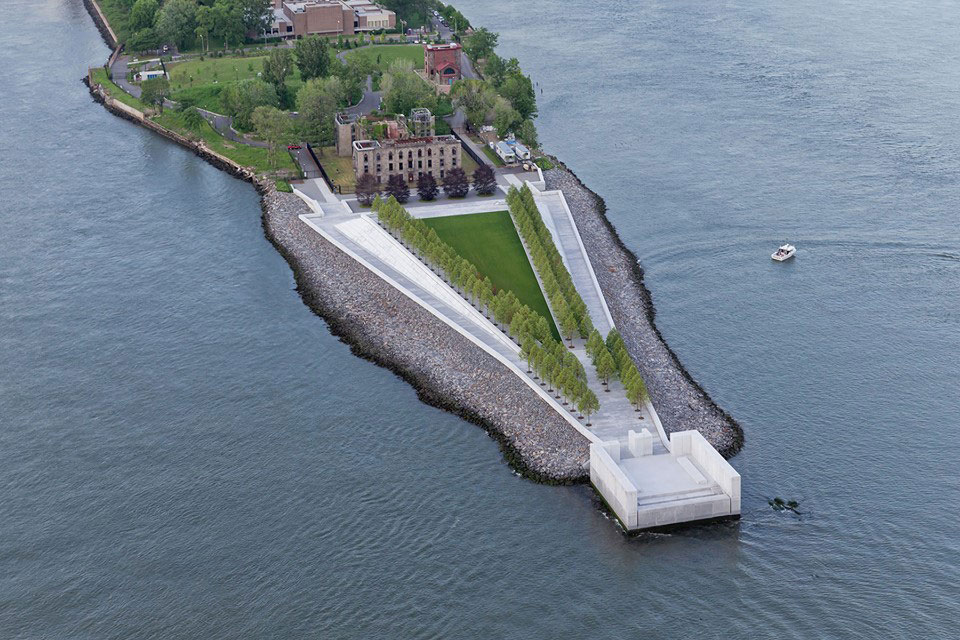

CANA Pave™ (previously Solepave™)
CANA Pave™ Resin Bound Gravel Landscaping Solutions
This unique gravel paving systems is designed with two key elements: CANA Gravel™ grid and ROMEX's gravel binding solutions. These patented binder is designed to bind the aggregate, glass or other product type together inside the CANA Gravel™ grid.
The combination of the resin and grid creates a surface that is aesthetically pleasing, 100% porous, wheelchair accessible and allows for flexibility in design.
CANA Pave™ (previously Solepave™) is for residential, public walking surfaces or light vedicular use with a resin bonded top layer (no grid visible).
CANA Pave™ - Pedestrian Surfaces
CANA Pave™ - Vehicular Traffic
Request a Quote or call us at 1.855.777.2673

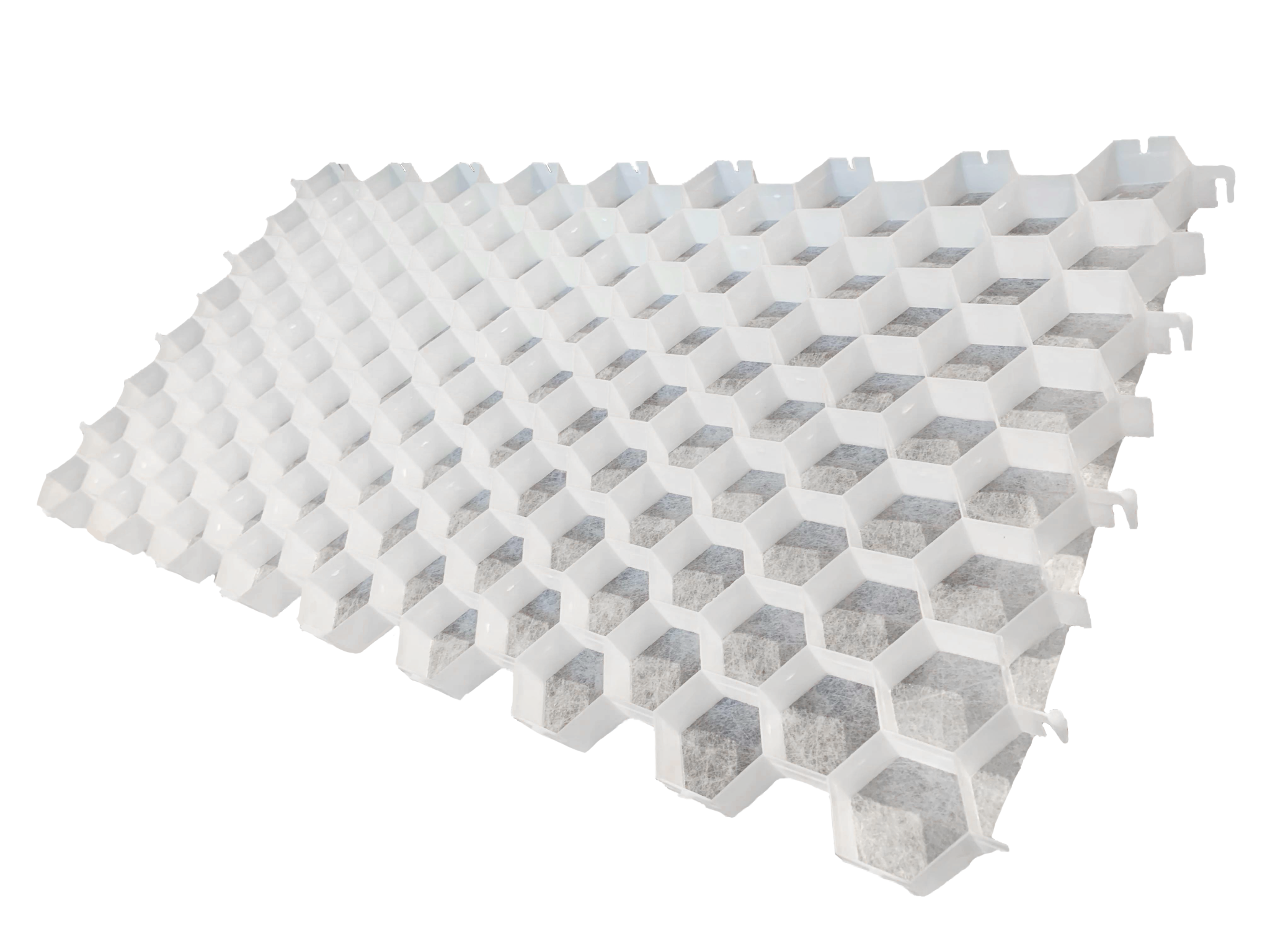

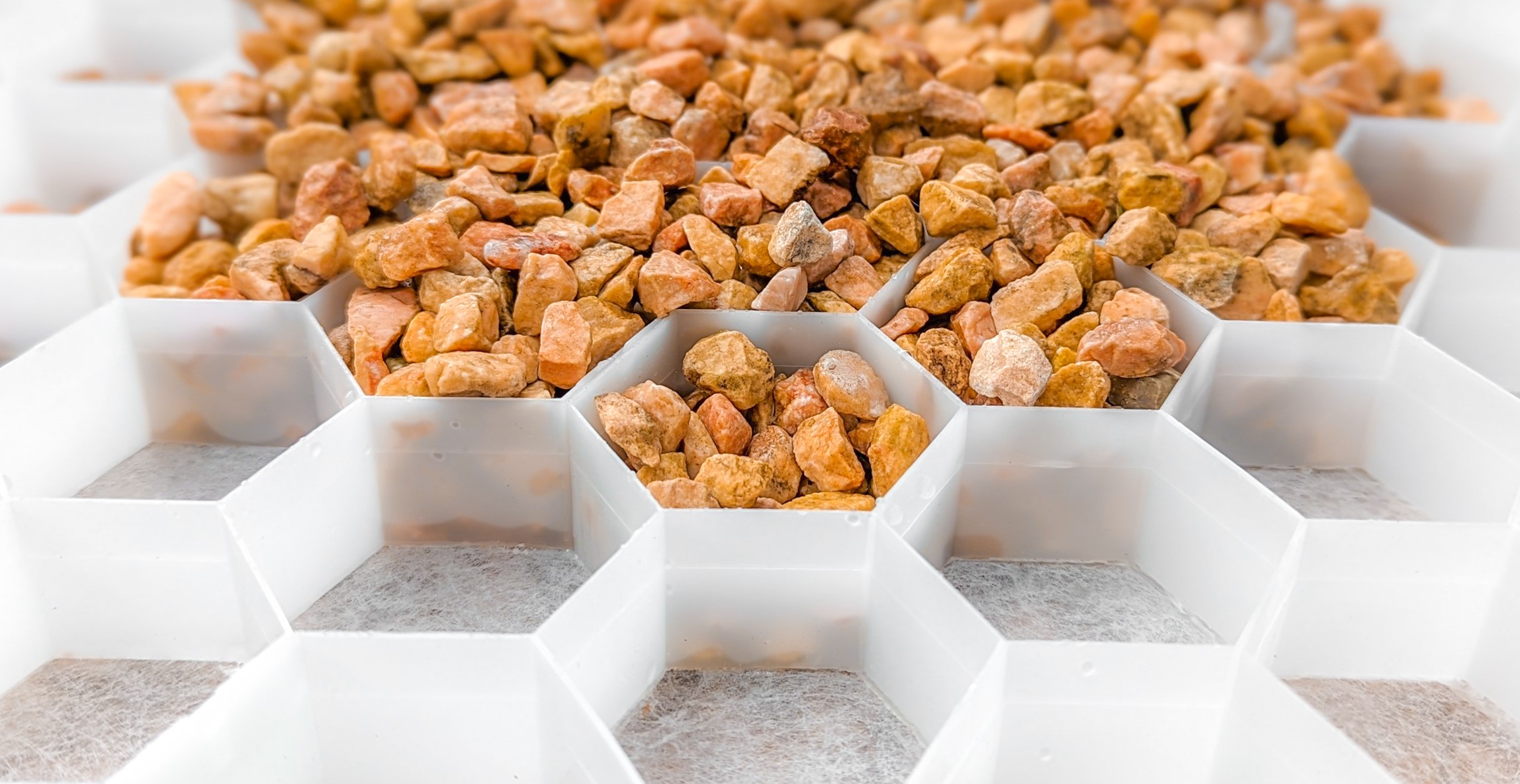

CORE Gravel™ 50-30
*Being discontinued, replaced by CANA Grid Medium*
Available only upon very special request.
Use: Light to Medium duty - patios, pathways, and landscaping
Gravel size: 5 -15 mm
Cell Size: 50 mm wide x 30 mm deep
Cell Wall Thickness: 1.3 mm
Sheet Size: 1.2 m X 0.8 m (= 10.33 sq.ft.)
Cell Colour: White
Geotextile Fabric: Yes
Compressive Strength: 60 t/m2 (empty)
Suitable for vehicles: Yes, light duty vehicles only
CORE Markers: Yes
Slopes: Excellent but use dependent: i.e. parking: no greater than 10 degree, other non-vehicular use: steep slope suitable.
Specifications Sheet
Request a Quote or call us at 1.855.777.2673
Ask us about contractor and volume discount pricing.
PDF Resource Links
CORE Gravel™ Design & Install Guide
CORE Gravel™ Applications & Specifications Page
ECO Calculator Calculate Emissions Savings using CORE
We are the Canadian/US Distributors for the CORE Gravel™ product line.
Contact us for an estimate on a project or to purchase materials for your personal or civic project.
